Satin Brass Cabinet Hardware Set, Solid Brass Knobs, Cup Pulls, Pull Handles, Hinges and Rosettes (Build Your Own)

Solid brass with a brushed satin finish — a soft, low-sheen glow of warm gold, without the mirror shine. Designed in England. Choose any piece and order exactly what you need — knobs, cup pulls, pull handles, hinges and rosettes that all match each other, and match our Satin Brass Collection 2 as well.

Every option is priced individually. Buy one piece, or fit a whole kitchen. The photo changes to show the piece you choose.

Cabinet knobs

Each supplied with a fixing bolt.

• Bloxwich Knob 32mm — ringed top, 31mm projection, 25mm base
• Bloxwich Knob 38mm — reeded, ringed top, 30mm projection, 23mm base
• Bun Knob 32mm — on a 35mm stepped rose, 38mm projection
• Bun Knob 38mm — on a 40mm stepped rose, 44mm projection
• Victorian Knob 32mm — 27mm projection, 32mm stepped base
• Victorian Knob 38mm — 33mm projection, 38mm stepped base
• Beehive Knob 32mm — reeded, 29mm projection, 21mm base
• Beehive Knob 38mm — reeded, 36mm projection, 21mm base

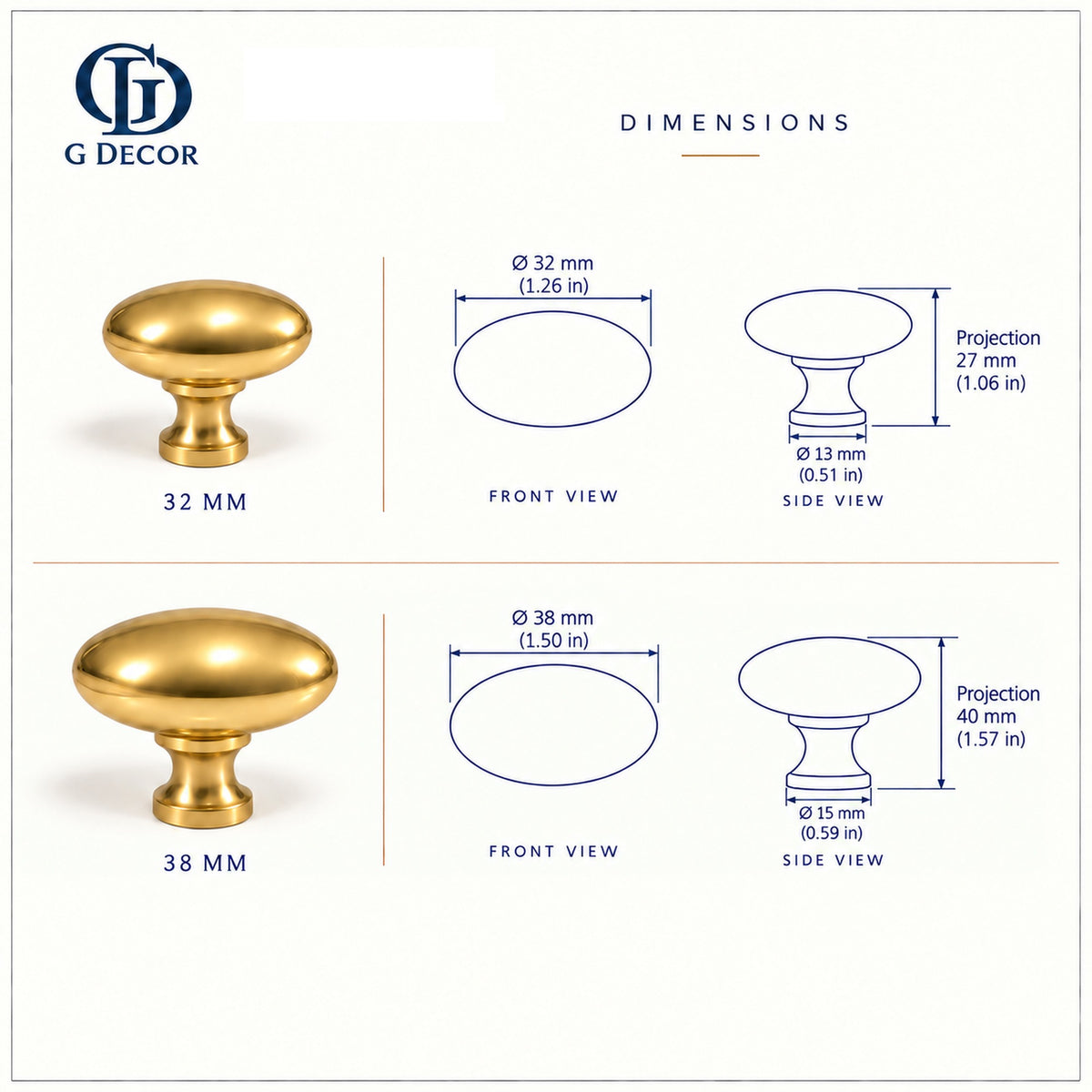

• Oval Knob 32mm — 27mm projection, 13mm stem
• Oval Knob 38mm — 40mm projection, 15mm stem

The Bun knobs come with their matching rose (7mm deep). Projection is how far the knob stands off the door.

Cup pulls — 4 inch

• Rounded Plate — 101 × 42mm, 83mm hole centres, 3mm plate
• Square Plate — 100 × 42mm, hole centres 83 × 23mm, 30mm projection, 4mm plate
• Bevelled Plate — 100 × 41mm, hole centres 86 × 25mm, 30mm projection, 4mm plate
• Card Frame — 94 × 72mm, hole centres 78 × 56mm, 70 × 28mm window for a written label, 28mm projection

Supplied with 20 × 2.7mm countersunk screws (6mm head).

Pull handles

Supplied with fixing screws.

• 152mm long (about 6 in), 139mm hole centres, 30mm projection
• 190mm long (about 7½ in), 180mm hole centres, 35mm projection

Hinges

2mm leaf, supplied with 19mm screws (5mm head).

• Butt Hinge 2 inch — 50 × 30mm open, 32mm hole centres, 6mm pin
• Butt Hinge 2.5 inch — 63 × 35mm open, 45mm hole centres, 6mm pin
• Backflap Hinge — 50 × 32mm open, 17mm hole centres, 8mm pin

Rosettes

2mm thick, 4mm centre hole.

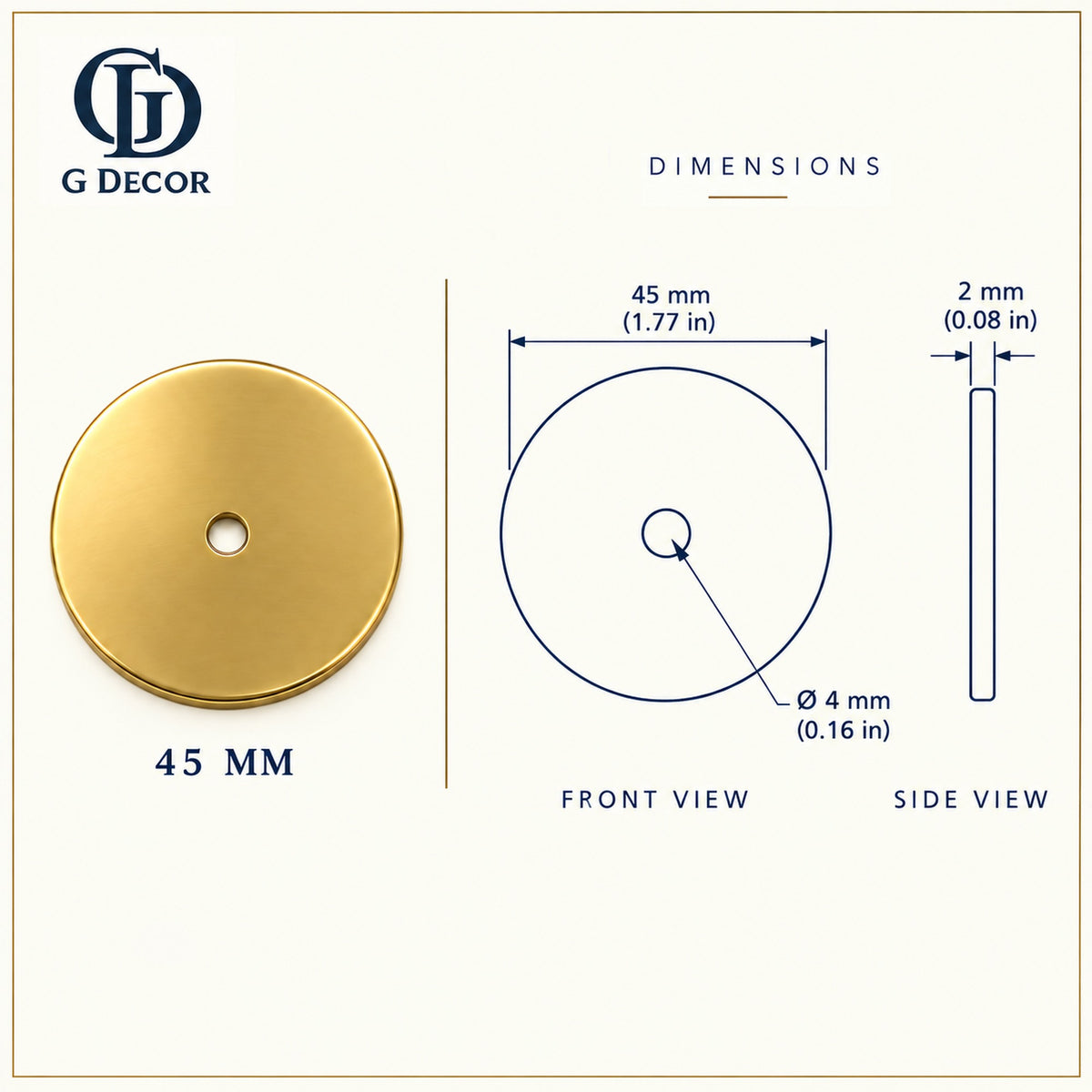

• Round Rosette — 45mm diameter

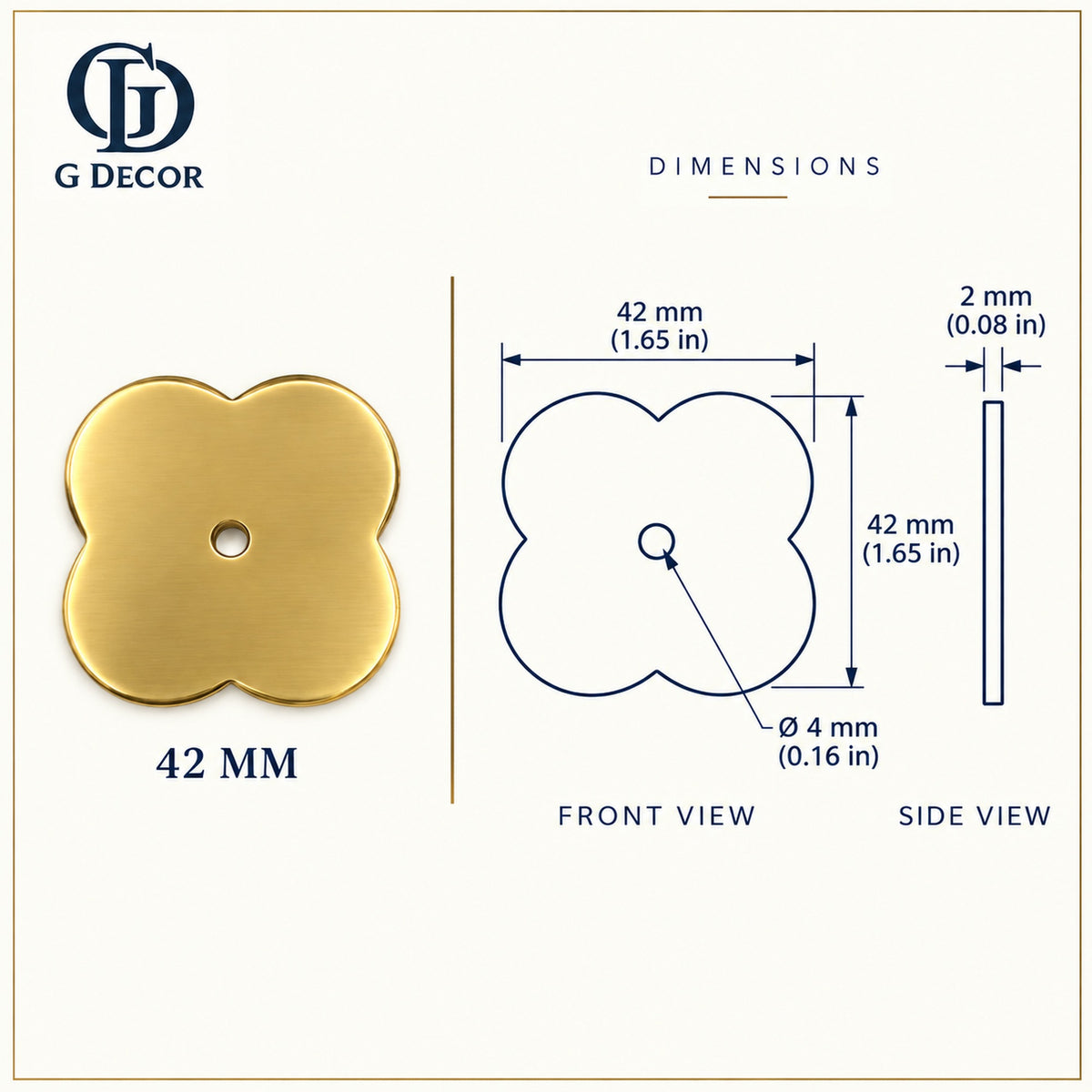

• Quatrefoil Rosette — 42 × 42mm

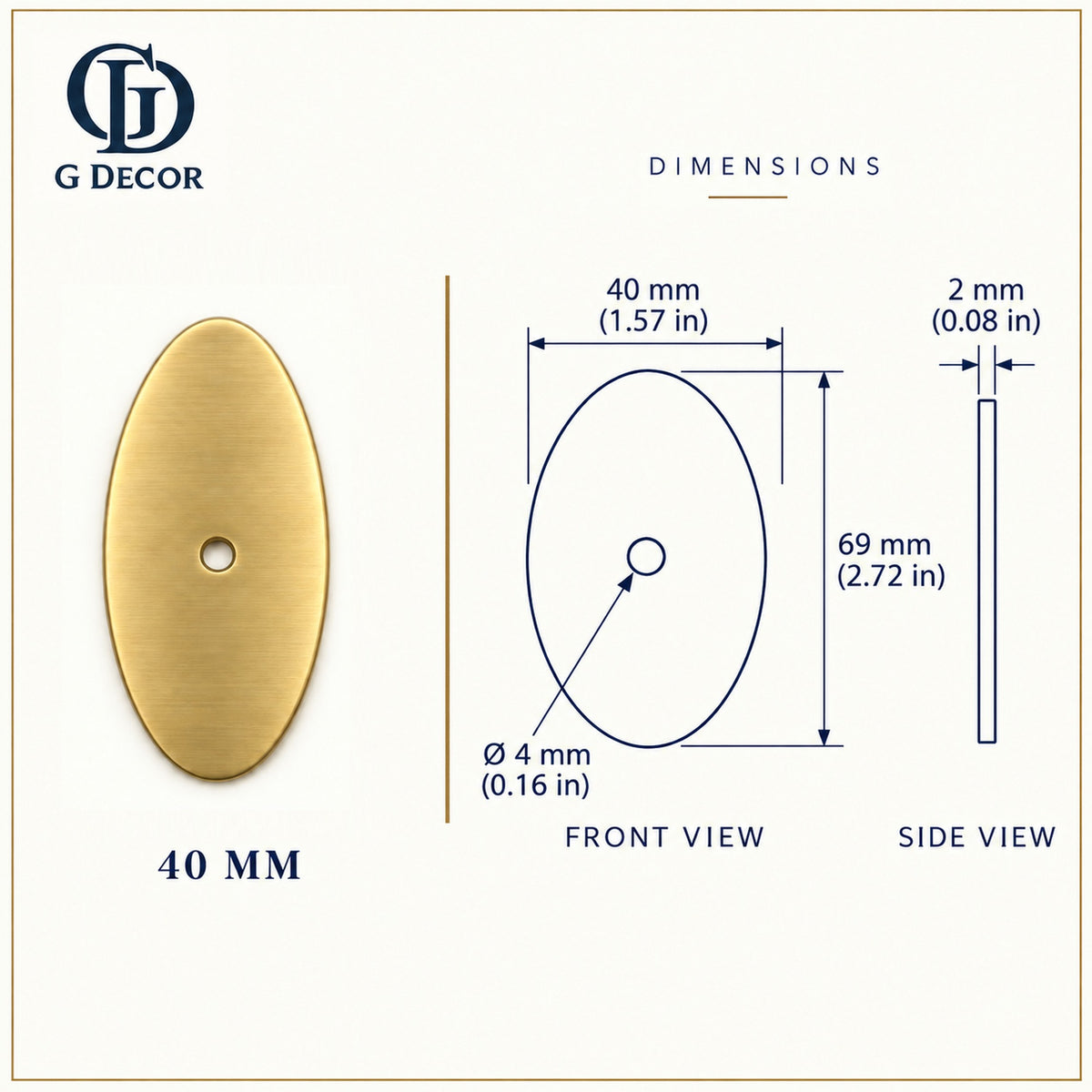

• Oval Rosette — 69 × 40mm

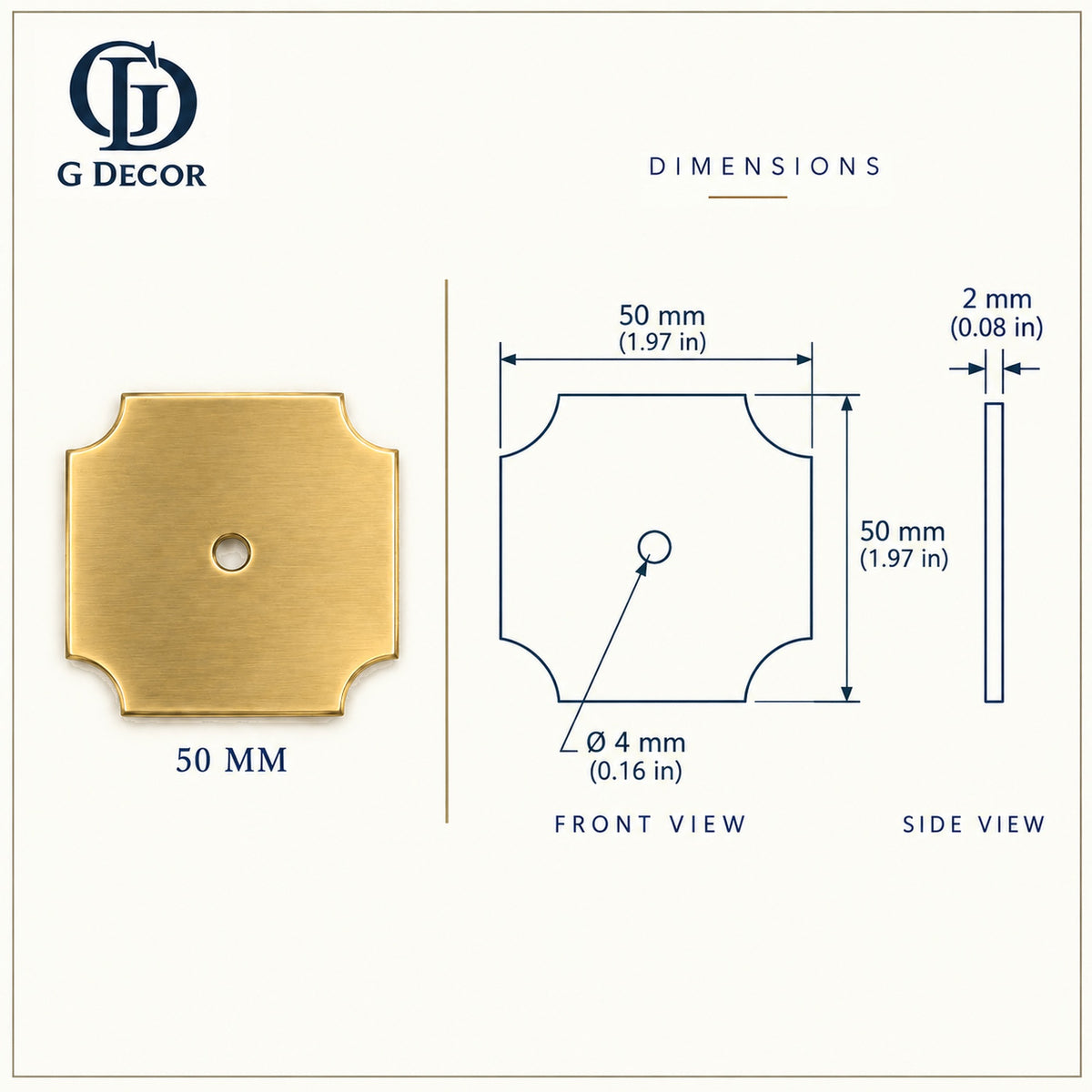

• Square Rosette — 50 × 50mm, shaped corners

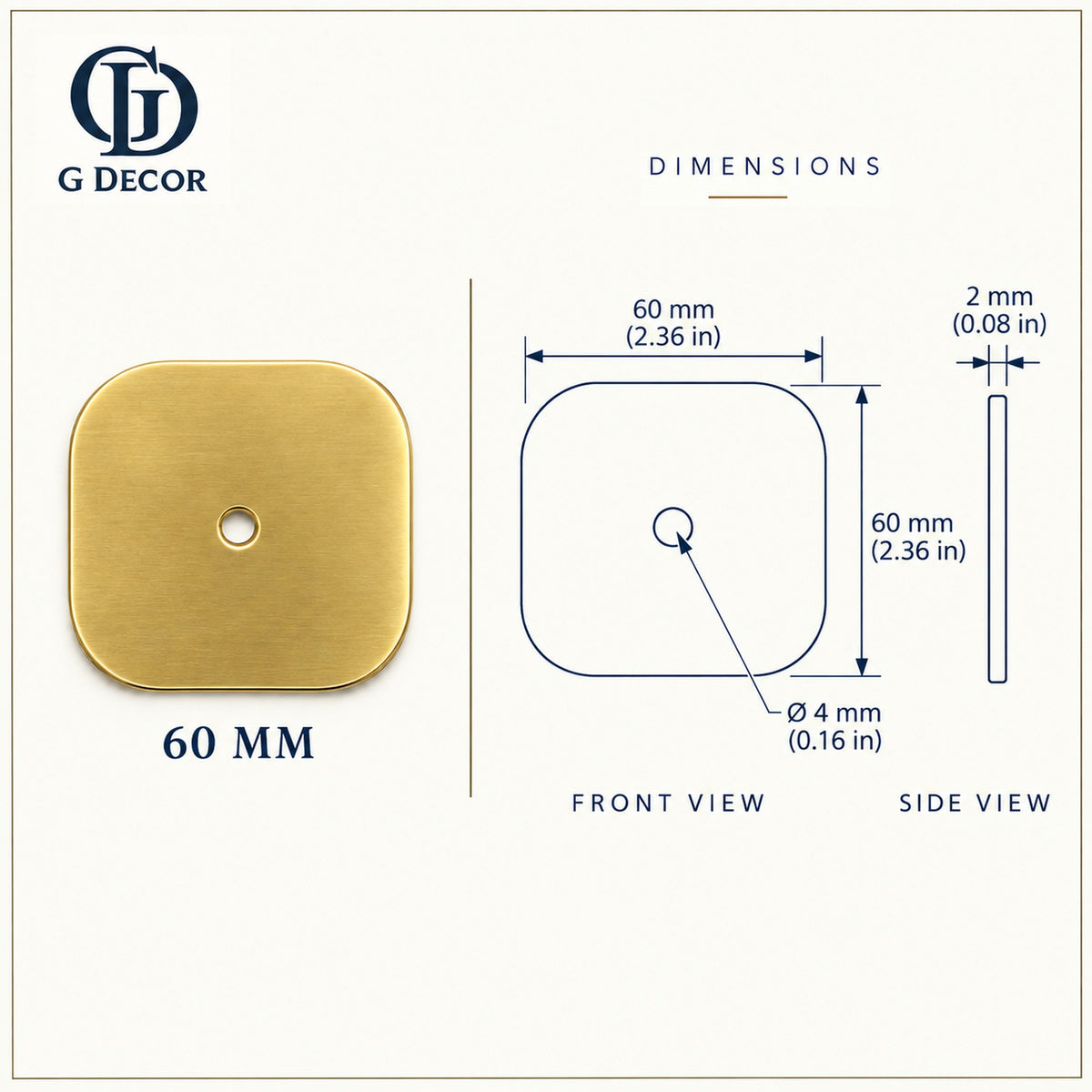

• Squircle Rosette — 60 × 60mm

Sits behind any of the knobs above. Sold separately from the knob. The size drawing for each rosette is in the photos. Sizes are measured on the piece — allow up to 1mm either way.

About the satin finish

Satin brass is brushed to a soft, low-sheen glow — warm gold without the mirror shine.

Unlacquered pieces — the Bloxwich, Bun, Victorian and Beehive knobs, and every cup pull, pull handle and hinge — have nothing sprayed over the brass. Like all real unlacquered brass they slowly mellow and deepen in tone with handling and time. Wipe with a soft dry cloth. Please don't use metal polish on a satin finish — it burnishes the brushed grain to a shine in patches.

Lacquered pieces — the two Oval Knobs and the five rosettes — carry a clear protective coat that keeps the satin finish as it arrives. Wipe these with a soft dry cloth only; metal polish and abrasives will strip the lacquer.

Made of

Solid brass throughout — not plated, not hollow. Hand-finished.

Please note

Screws are included with the cup pulls, pull handles and hinges. Knobs come with a fixing bolt. Rosettes are sold on their own.

Flat, Oval & Rose, Round, Ball and Mushroom knobs, more cup pulls, D handles and backplates are in our Satin Brass Collection 2.

The whole range sits in The Windsor Collection.

Shade varies a little between screens.

Dispatched from England.
